Product Description
Auto Radiator Cooling Fan Motor 16363-0Y040 268000-8030 For Toyota Vios 2002-2008

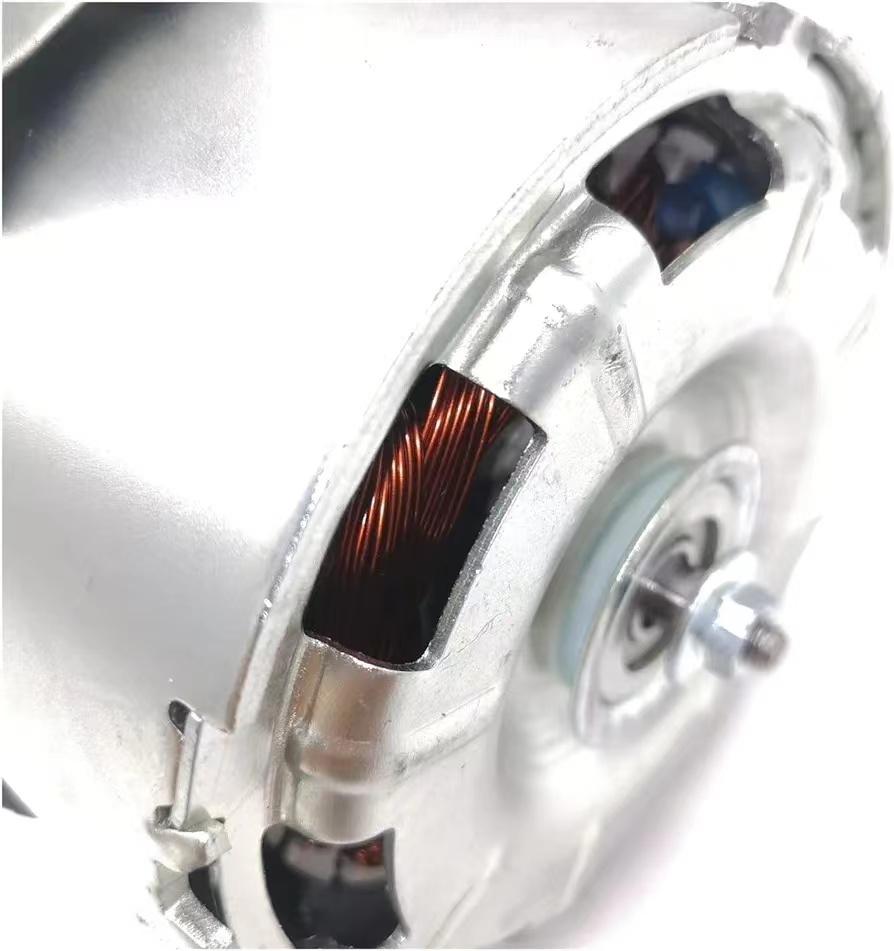

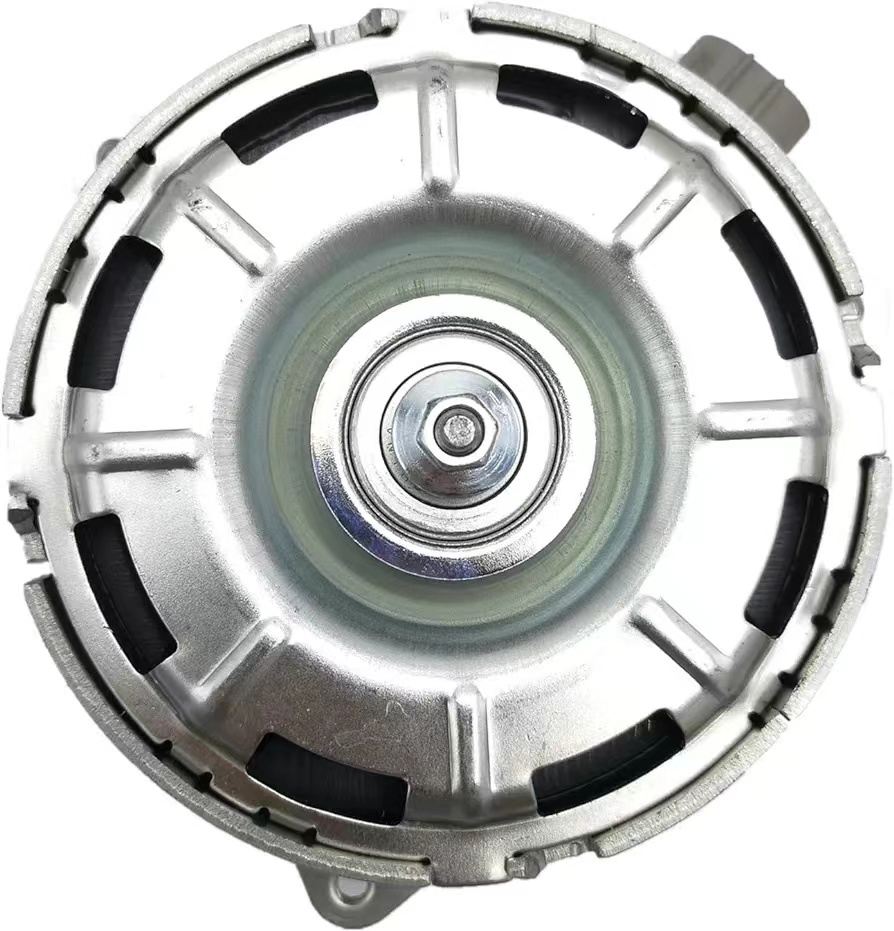

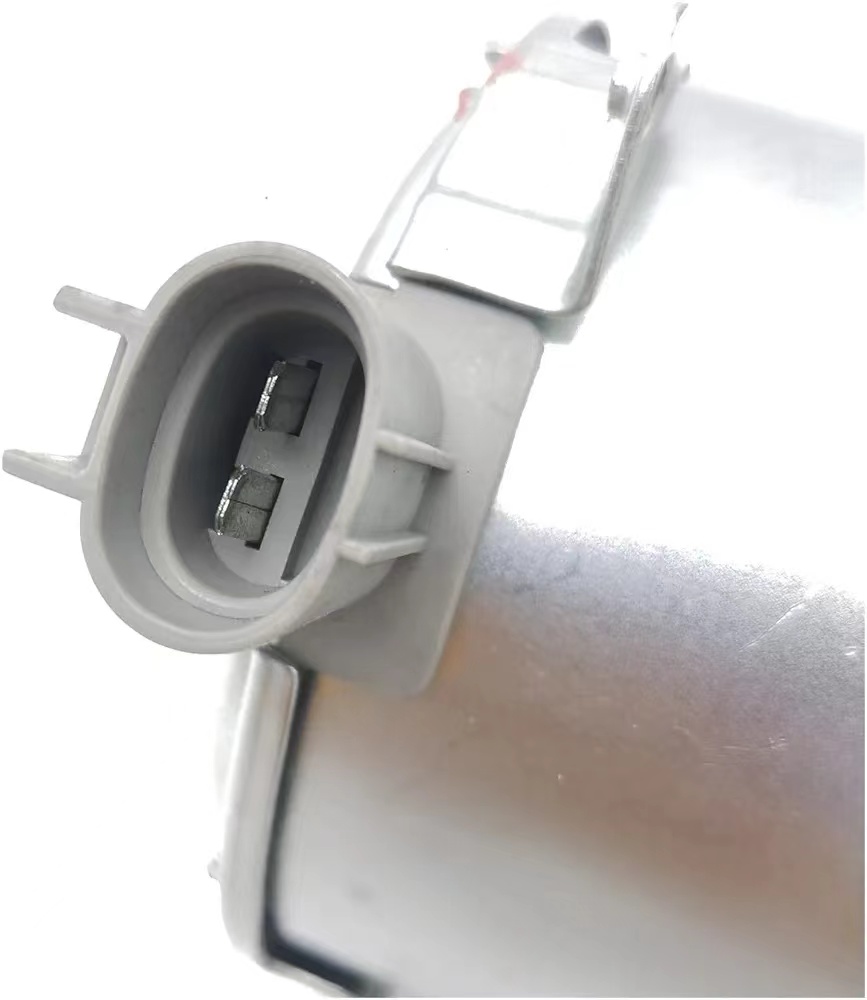

Product Pictures
Technical Specifications
| Specification | Details |
|---|
| Product Name | Radiator Cooling Fan Motor |
| Part Number | 38616-5A4-H01 386165A4H01 |
| Voltage | 12V (Standard Automotive) |
| Warranty | 1 Year |
Symptoms of Failure
| Symptom | Description |
|---|
| Engine Overheating | Engine temperature rises above normal, especially at idle or in stop-and-go traffic |
| AC Inefficiency | Air conditioner blows warm air when vehicle is stopped |
| Unusual Noises | Grinding, squeaking, or clicking sounds coming from fan area |
| Fan Not Spinning | Cooling fan does not turn on even when engine is hot |
| Slow Fan Speed | Fan rotates slower than normal, reducing airflow through radiator |
| Intermittent Operation | Fan works sometimes but fails at other times |
| Visible Damage | Burn marks, melted connector, or broken fan blades |
Note: If you experience any of these symptoms, inspect your cooling fan motor immediately to prevent engine damage.
Installation Guide
| Step | Instruction |
|---|
| 1 | Disconnect negative battery cable |
| 2 | Remove fan shroud from vehicle (if applicable) |
| 3 | Unplug electrical connector from old motor |
| 4 | Remove mounting bolts and take out old motor |
| 5 | Remove fan blade from old motor |
| 6 | Install fan blade onto new motor (same orientation) |
| 7 | Mount new motor to fan shroud and tighten bolts |
| 8 | Reinstall fan shroud assembly |
| 9 | Reconnect electrical connector |
| 10 | Reconnect battery cable |
| 11 | Start engine and test fan operation |
Tips
- Check fan blade for cracks before reinstalling
- Keep wiring away from moving parts
- Test fan before full reassembly
Safety
Disconnect battery before starting. Consult a professional if unsure.
Why Choose Our Cooling Fan Motor?
✓ Precision Engineering – Strict quality control
✓ 100% Performance Tested – Each unit is tested before packaging to ensure reliability
✓ Heat-Resistant Design – Engineered to withstand continuous high-temperature operation
✓ Value for Money – Premium quality at an affordable aftermarket price
✓ Fast Response – 24-hour reply to your inquiries
Frequently Asked Questions (FAQ)
Q: Does this motor include the fan blade?
A: No, this listing is for the motor only. The fan blade must be transferred from your original unit.
Q: How do I confirm this motor fits my vehicle?
A: Please check your original part number and compare with our listing. Contact us with your VIN for confirmation.
Q: Is installation difficult?
A: Installation is straightforward with basic hand tools. Professional installation is recommended if you are not experienced.
